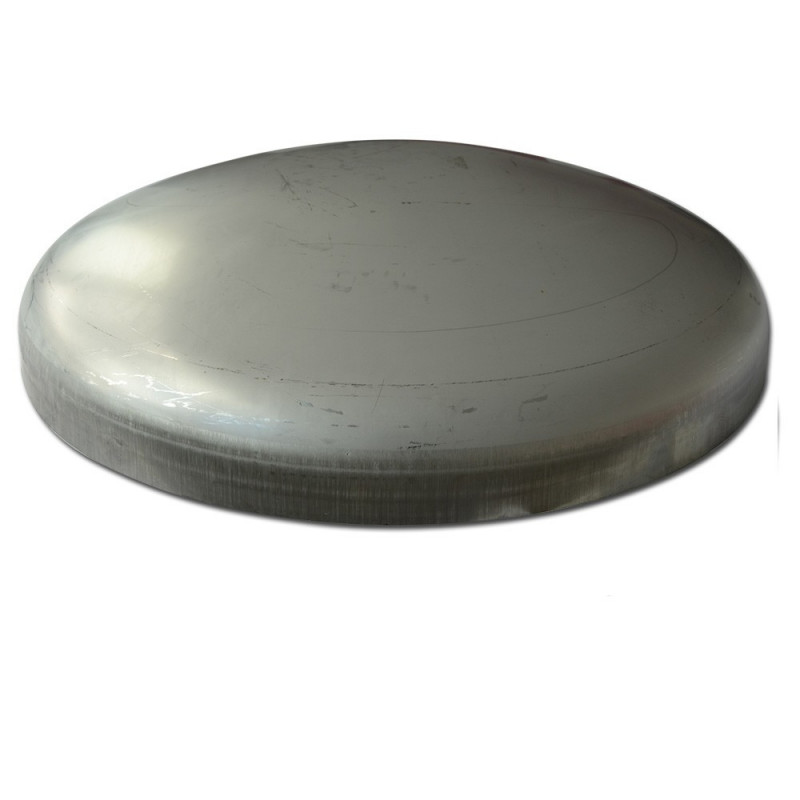

DIN28011- 316L- 600mm diameter 4mm thick

Features of this stainless steel tank ends

This 316L stainless steel end is manufactured in accordance with DIN28011.

The dish radius is 610mm.

The knuckle radius is 61mm.

The straight flange height is 25mm.

Moreover, Distrifond is able to provide you material certificate 3.1 according to EN 10204 with EN 10-0287 and ASTM A240 for each of your dished ends.

DIN28011 heads forming processes

Dished heads are manufactured by cold processes, spinning or press-forming.

All our dished stainless steel are supplied without grease. No heat treatment is performed after forming.

Manufacturing standards of stainless steel heads

These bottoms are manufactured in accordance with DIN28011. Manufacturing tolerances strictly follow the DIN28011, highlighting the tolerances on its height, its thickness after forming.

For a tank bottom ordered at a nominal thickness (also called starting thickness) E, the actual thickness measured after forming may differ from E, not only because of the tolerances on the thickness of the sheet, but also because of changes caused by the forming process.

Short circuit distribution of our tank heads

Thanks to the direct relationship with our manufacturing partners, we want to guarantee a short circuit without any intermediary. This allows the control of raw materials but also ensures a high level of quality at an affordable price. For our customers, this guarantees the quality of our dished ends which is perfect in case of urgent deadline.
